제품 세부 정보
원래 장소: 중국
브랜드 이름: OUB
인증: ISO 9001
모델 번호: 232-15-15970
지불 및 배송 조건
최소 주문 수량: 10 개 PCS/평가판 주문 수락
가격: 협상 가능
포장 세부 사항: 내부 PP 백. outer는 필름 포장 된 상자입니다.
배달 시간: 탈수를받은 후 5-15 일 이내에
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력: 1000pcs
부품 번호: |
232-15-15970 |
모델: |
GD305A-1 |
기계: |
채점자 |
크기: |
OEM |
이름: |
틈 메우는 물건 |
실린더: |
전염 |
온도: |
+150C |
재료: |
탄소 섬유, 셀룰로오스 섬유 |
색상: |
검은색 |
부품 번호: |
232-15-15970 |
모델: |
GD305A-1 |
기계: |
채점자 |
크기: |
OEM |
이름: |
틈 메우는 물건 |
실린더: |
전염 |
온도: |
+150C |
재료: |
탄소 섬유, 셀룰로오스 섬유 |
색상: |
검은색 |
1. Quick Details of seal 232-15-15970 :
| Part NO. | 232-15-15970 |
| Machine | GD655A, GD661A, GD705A, GD725A |
| Size | OEM |
| Material | Carbon fiber,Cellulose fiber |
| Oil seal type | TRANSMISSION,SERVICE KIT |
2. 232-15-15970 parts on group :
| NO. | PART NAME | PART NAME | QTY |
| 1 | 23E-15-05113 | SERVICE KIT,TRANSMISSION | 1 |
| 2 | 07000-05310 | O-RING | 1 |
| 3 | 07000-73035 | O-RING | 1 |
| 4 | 07000-73025 | O-RING | 1 |
| 5 | 07000-02065 | O-RING | 1 |
| 6 | 07000-05165 | O-RING | 1 |
| 7 | 07000-72014 | O-RING | 1 |
| 8 | 23B-15-16130 | GASKET | 1 |
| 9 | 07000-73022 | O-RING | 1 |
| 10 | 07000-72018 | O-RING | 1 |
| 11 | 07000-72021 | O-RING | 1 |
| 12 | 07000-73022 | O-RING | 1 |
| 13 | 07000-72021 | O-RING | 1 |
| 14 | 07000-72018 | O-RING | 1 |
| 15 | 07000-73038 | O-RING | 1 |
| 16 | 07000-73022 | O-RING | 1 |
| 17 | 07000-73025 | O-RING | 1 |
| 18 | 07000-73022 | O-RING | 1 |
| 19 | 07000-72018 | O-RING | 2 |
| 20 | 07000-72016 | O-RING | 2 |
| 21 | 07002-03634 | O-RING | 1 |
| 22 | 07000-73025 | O-RING | 1 |
| 23 | 07000-73045 | O-RING | 1 |
| 24 | 07000-02075 | O-RING | 1 |
| 25 | 07000-02090 | O-RING | 1 |
| 26 | 07000-02090 | O-RING | 3 |
| 27 | 07000-05355 | O-RING | 1 |
| 28 | 07000-73028 | O-RING | 1 |
| 29 | 07000-73035 | O-RING | 1 |
| 30 | 07000-02075 | O-RING | 1 |
| 31 | 113-15-29220 | RING,SEAL | 1 |
| 32 | 103-15-29210 | SEAL,RING | 1 |
| 33 | 113-15-29250 | RING,SEAL | 1 |
| 34 | 144-15-11290 | RING,SEAL | 2 |
| 35 | 103-15-29270 | SEAL,RING | 1 |
| 36 | 113-15-29250 | RING,SEAL | 1 |
| 37 | 103-15-29260 | SEAL,RING | 1 |
| 38 | 113-15-29250 | RING,SEAL | 1 |
| 39 | 103-15-29260 | SEAL,RING | 1 |
| 40 | 113-15-29250 | RING,SEAL | 1 |
| 41 | 103-15-29260 | SEAL,RING | 1 |
| 42 | 113-15-29250 | RING,SEAL | 1 |
| 43 | 125-15-39210 | RING,SEAL | 1 |
| 44 | 113-15-12861 | RING,SEAL | 1 |
| 45 | 234-15-29220 | RING,SEAL | 1 |
| 46 | 23E-15-19210 | SEAL,RING | 1 |
| 47 | 07000-02115 | O-RING,RING | 1 |
| 48 | 07000-73025 | O-RING | 2 |
| 49 | 07005-01212 | GASKET | 2 |
| 50 | 07012-11065 | SEAL,OIL | 1 |
| 51 | 23B-15-13451 | GASKET | 1 |
| 52 | 130-09-11590 | SEAL,OIL | 1 |
| 53 | 23B-15-13451 | GASKET | 1 |
| 54 | 07000-05170 | O-RING | 1 |
| 55 | 07012-10080 | SEAL,OIL | 1 |
| 56 | 07000-02135 | O-RING | 1 |
| 57 | 07000-02100 | O-RING | 1 |
| 58 | 232-15-15971 | GASKET | 1 |
| 59 | 232-15-15970 | GASKET | 1 |
| 60 | 232-15-15961 | GASKET | 1 |
| 61 | 232-15-15960 | GASKET | 1 |
| 62 | 23B-15-15952 | GASKET | 1 |
| 63 | 23B-15-15951 | GASKET | 1 |
| 64 | 23B-15-15950 | GASKET | 1 |
| 65 | 07000-73028 | O-RING | 2 |

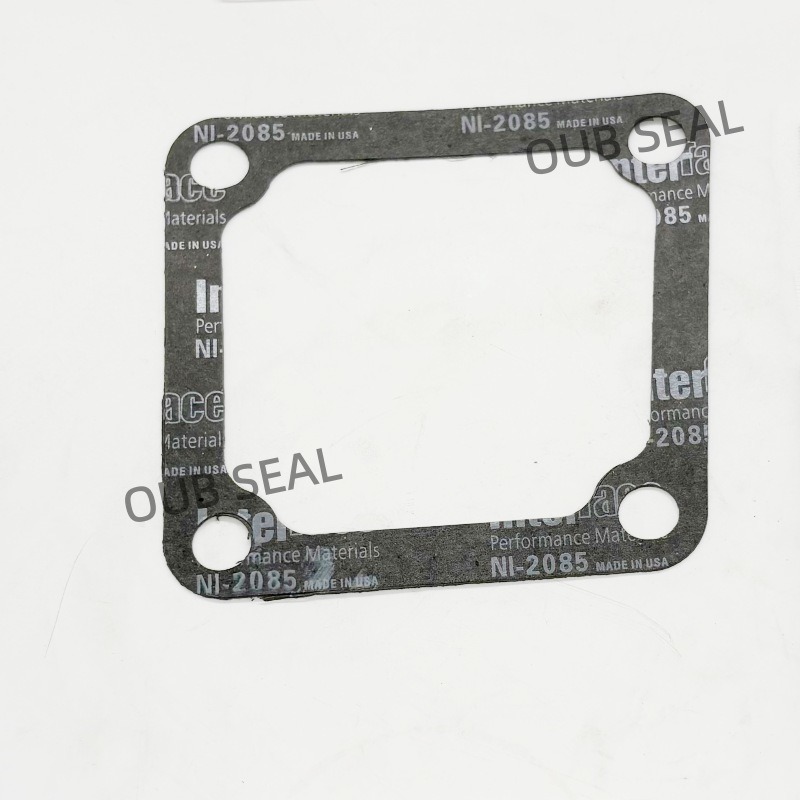

3. 232-15-15970 picture:
4. Service ring part no. :
| PART NO. | PART NO. | Part NO. |
| 232-15-15970 | 07005-01212 | 232-15-15971 |
| 232-03-52340 | 07005-03016 | 474-44-14241 |
| 23E-15-05113 | 07005-02216 | 230-70-17441 |
| 425-32-05010 | 07005-00812 | 234-71-13131 |
| 56B-15-05000 | 07005-01412 | DC77B2056000 |
| 707-99-64180 | 07005-02416 | 707-99--37570 |
5. FAQ
Q: Is this just an ordinary piece of paper?
A: Of cause not.The "paper gasket" you see is a high-tech industrial sealing product. It may seem ordinary, but it's a crucial component ensuring the gearbox doesn't leak under harsh conditions of oil immersion, high temperature, high pressure, and vibration. When repairing, always use the original or high-quality brand gasket provided in the repair kit. Do not substitute with unsuitable materials, as this can easily lead to oil leaks and cause more serious malfunctions.
Q: What is the function of this brass rings in the transmission seal kit ?
A: The primary function of the brass rings (specifically synchronizer rings or blocker rings) in a grader's transmission is to synchronize the rotational speed of the gear you are shifting into with the rotational speed of the shaft it needs to engage. This ensures a smooth, quiet, and non- destructive gear shift.
If you need more details, you can join us for further discussion.
