제품 세부 정보
원래 장소: 중국
브랜드 이름: OUB
인증: ISO 9001
모델 번호: 17A-22-17320
지불 및 배송 조건
최소 주문 수량: 10 개 PCS/평가판 주문 수락
가격: 협상 가능
포장 세부 사항: 내부 PP 백. outer는 필름 포장 된 상자입니다.
배달 시간: 탈수를받은 후 5-15 일 이내에
지불 조건: L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력: 1000개
부품 번호: |
17A-22-17320 |
모델: |
D155A D275AX |
기계: |
불도저 |
크기: |
OEM |
이름: |
틈 메우는 물건 |
실린더: |
전염 |
온도: |
+150C |
재료: |
탄소 섬유, 셀룰로오스 섬유 |
색상: |
검은색 |
부품 번호: |
17A-22-17320 |
모델: |
D155A D275AX |
기계: |
불도저 |
크기: |
OEM |
이름: |
틈 메우는 물건 |
실린더: |
전염 |
온도: |
+150C |
재료: |
탄소 섬유, 셀룰로오스 섬유 |
색상: |
검은색 |
1. Quick Details of seal 17A-22-17320 :
| Part NO. | 17A-22-17320 |
| Machine | D155A D275AX |
| Size | OEM |
| Material | Carbon fiber,Cellulose fiber |
| Oil seal type | GASKET KIT |
2. 17A-22-17320 parts on group :
| NO. | PART NO. | PART NAME | QYT |
| 1 | 17A-22-17191 | CASE | 1 |
| 2 | 17A-22-17311 | PLATE | 1 |
| 3 | 17A-22-17320 | GASKET | 1 |
| 4 | 01010-81230 | BOLT | 4 |
| 5 | 01643-31232 | WASHER | 4 |
| 6 | 17A-22-17271 | PIPE | 1 |
| 7 | 07000-12070 | O-RING | 1 |
| 8 | 07000-13038 | O-RING | 1 |
| 9 | 01010-81235 | BOLT | 2 |
| 10 | 01643-31232 | WASHER | 2 |
| 11 | 205-03-71330 | COLLAR | 1 |
| 12 | 156-76-21170 | CLIP | 1 |
| 13 | 01010-81260 | BOLT | 1 |
| 14 | 01643-31232 | WASHER | 1 |
| 15 | 17A-22-17211 | BRACKET | 1 |
| 16 | 01010-81225 | BOLT | 3 |
| 17 | 01643-31232 | WASHER | 3 |
| 18 | 17A-22-16210 | TUBE | 1 |
| 19 | 07000-12075 | O-RING | 1 |
| 20 | 17A-22-17341 | JOINT | 1 |
| 21 | 07002-13634 | O-RING | 1 |
| 22 | 04020-00514 | PIN,DOWEL | 1 |
| 23 | 195-49-31280 | VALVE | 1 |
| 24 | 198-49-35210 | HOSE | 1 |
| 25 | 07281-00359 | CLAMP | 1 |
| 26 | 17A-22-16271 | BRACKET | 1 |
| 27 | 01010-81230 | BOLT | 2 |
| 28 | 01643-31232 | WASHER | 2 |
| 29 | 17A-22-17290 | TUBE | 1 |
| 30 | 07000-73022 | O-RING | 2 |
| 31 | 17A-22-17280 | TUBE | 3 |
| 32 | 07000-73022 | O-RING | 6 |
| 33 | 07000-73032 | O-RING | 6 |
| 33 | 07000-73032 | O-RING | 4 |
| 34 | 17A-22-17290 | TUBE | 1 |
| 35 | 07000-73022 | O-RING | 2 |
| 36 | 17A-22-17130 | TUBE | 1 |
| 37 | 07000-12018 | O-RING | 1 |
| 38 | 01010-81235 | BOLT | 2 |
| 39 | 01643-31232 | WASHER | 2 |
| 40 | 17A-22-17160 | TUBE | 1 |
| 41 | 07206-31216 | BOLT | 2 |
| 42 | 07005-01612 | SEAL, WASHER | 4 |
| 43 | 17A-22-17141 | TUBE | 1 |
| 44 | 07206-30508 | BOLT, JOINT | 1 |
| 45 | 07005-00812 | SEAL, WASHER | 2 |
| 46 | 07206-30508 | BOLT, JOINT | 1 |
| 47 | 07005-00812 | SEAL, WASHER | 2 |
| 48 | 01010-81260 | BOLT | 32 |
| 49 | 01643-31232 | WASHER | 32 |
| 50 | 01010-81230 | BOLT | 4 |
| 51 | 01643-31232 | WASHER | 4 |
| 52 | 04530-13045 | BOLT | 2 |

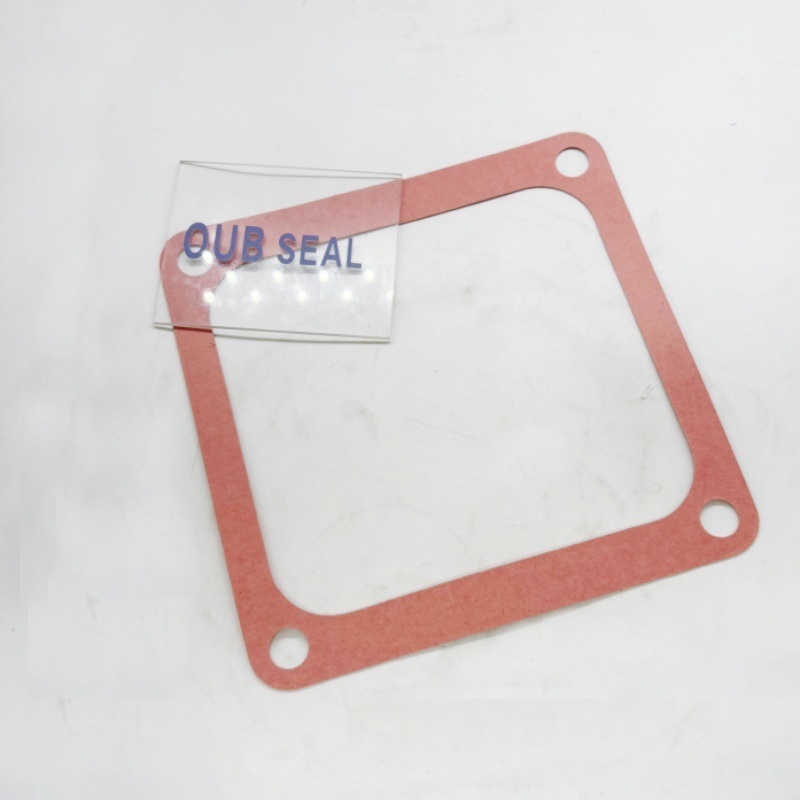

3. 17A-22-17320 picture:
4. Service ring part no. :
| PART NO. | PART NO. | Part NO. |
| 17A-22-17320 | 6162-13-5611 | 6217-21-5811 |
| 6217-11-8830 | 262-70-27310 | 6134-21-5950 |
| 20N-60-11181 | 262-70-27220 | 6131-11-1811 |
| 6162-13-5611 | 07005-00812 | 6210-61-6331 |
| 07332-52400 | 07005-01412 | 6136-11-5810 |
| 6131-11-1811 | 07332-52000 | 262-70-27310 |
5. FAQ
Q: Is this just an ordinary piece of paper?
A: Of cause not.The "paper gasket" you see is a high-tech industrial sealing product. It may seem ordinary, but it's a crucial component ensuring the gearbox doesn't leak under harsh conditions of oil immersion, high temperature, high pressure, and vibration. When repairing, always use the original or high-quality brand gasket provided in the repair kit. Do not substitute with unsuitable materials, as this can easily lead to oil leaks and cause more serious malfunctions.
Q: In which position is the gasket used?
A: In transmissions, these gaskets are primarily used for:
Q: What is the function of this brass rings in the transmission seal kit ?
A: The primary function of the brass rings (specifically synchronizer rings or blocker rings) in a grader's transmission is to synchronize the rotational speed of the gear you are shifting into with the rotational speed of the shaft it needs to engage. This ensures a smooth, quiet, and non- destructive gear shift.
If you need more details, you can join us for further discussion.
